TC-8XXX 1/8 HP Machine Coolant Pump

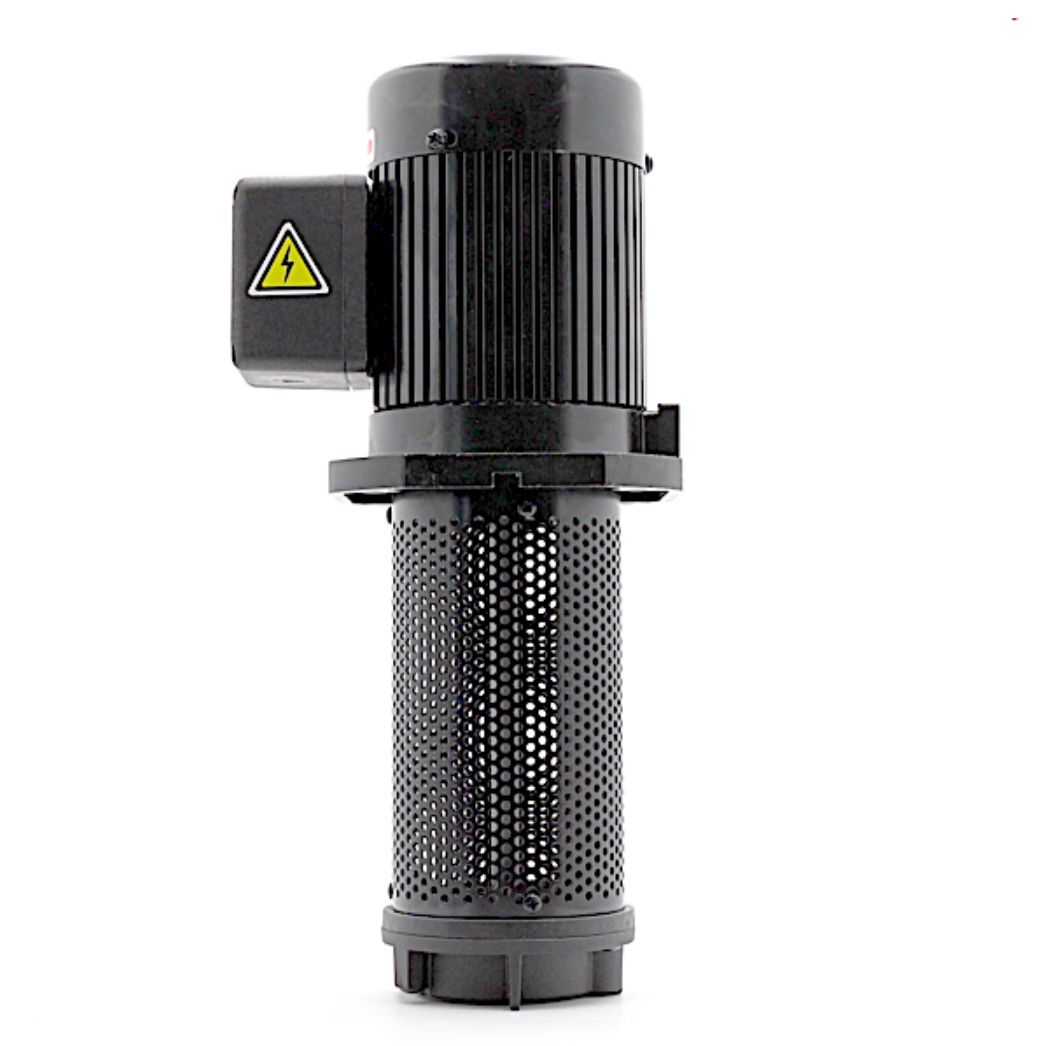

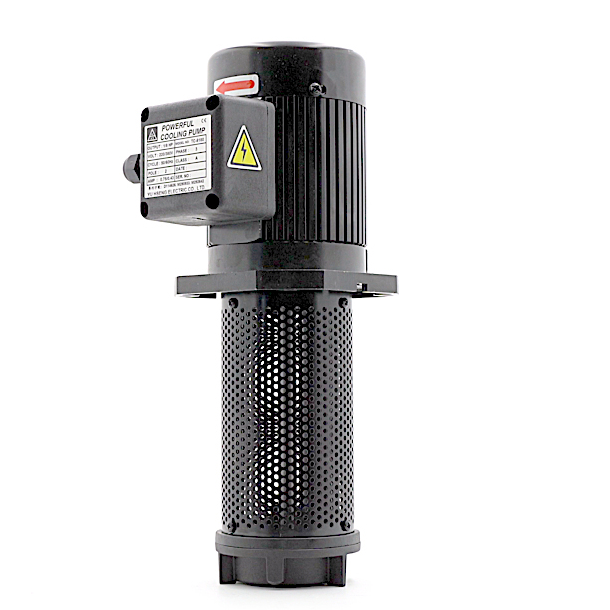

TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation

  • TC-8180 Machinery Coolant Pump immersion length 180mm (7").
  • Yu Hseng 1/8HP TC Coolant Pump is engineered to deliver efficient, low-maintenance operation with a quiet motor and consistent flow. It enhances machining accuracy, prevents tool wear, and maintains clean coolant circulation in a wide range of machine tools.
  • The TC Series coolant pump is developed for spraying of cooling lubricants and the circulation system, especially for machine tools. It is suitable to driver liquids such as water, coolant, light oil and other clean, non-aggressive matters liquid to cooling or lubricant applications. TC Series can be used in all type machine tools to perform Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operation (Lathing machine drilling machine, lapping machine, Milling machine, pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation)
Contact
TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation
  • TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation
  • TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation
  • TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation
  • TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation
  • TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation
  • TC-8180 1/8HP Machinery Coolant pump immersion 180 mm (7"), Lathe Saw Cutting Drilling Machine Circulation

Specification




  • Brand: Yu Hseng
  • Model: TC-8180
  • Power: 94W (1/8 HP)
  • Phase & Voltage ( Low Volt / High Volt ): 1Φ & 100/200V, 110/220V, 115/230V, 120/240V; 3Φ & 220/440V, 220/380V, 208/415V,230/460V, 240/480V, 575V
  • Discharge Bore: NPT 3/8 ", NPT 1/2", PT(BSPT) 3/8", PT(BSPT) 1/2"
    (PT=BSPT=RC)

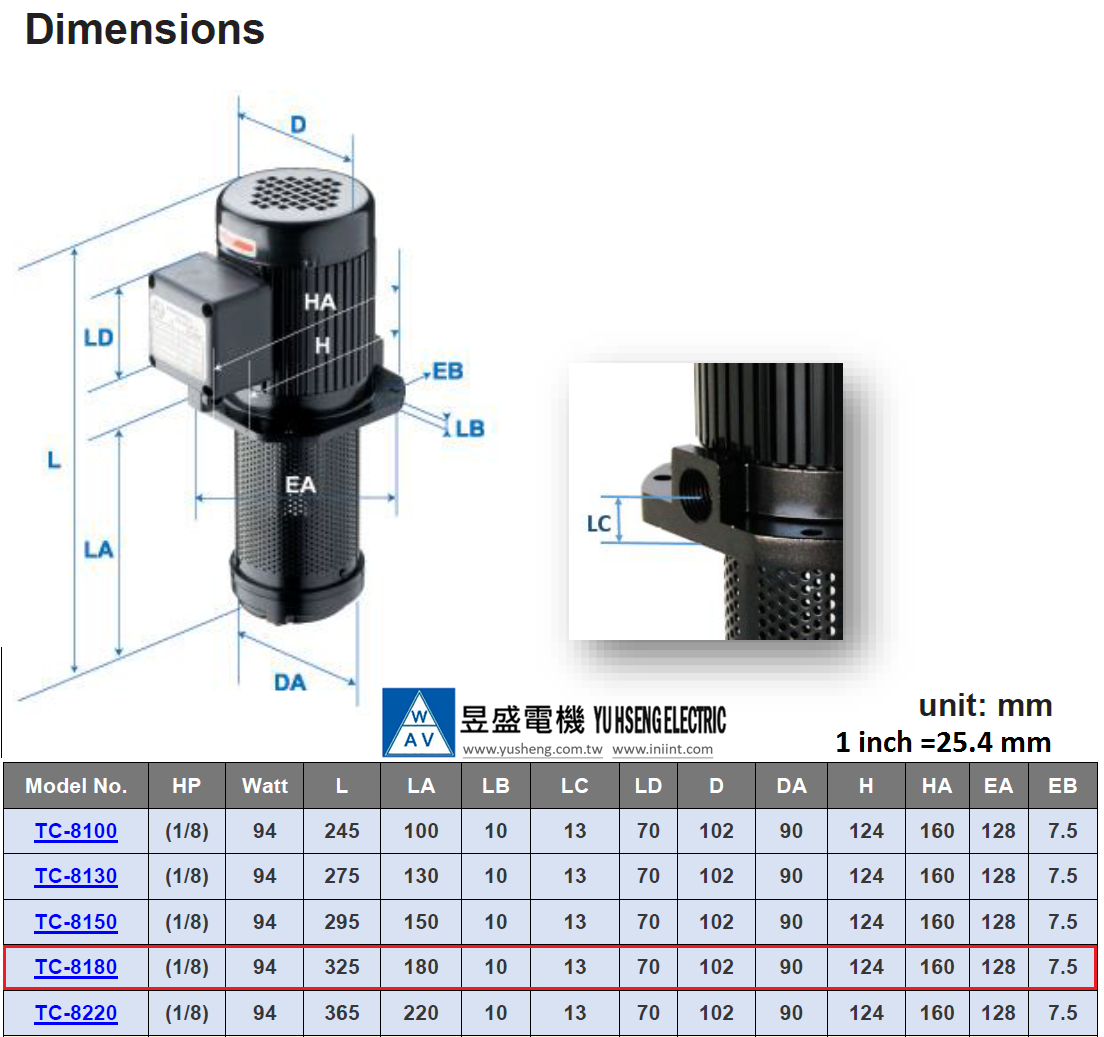

  • Immersion Length of shaft (flange to bottom): 180mm (7 ")
  • Most brands compatible ( Fuji AMT Graymills Yeong Chyung Flair Warlus etc.)
  • Made in Taiwan



  • Flow rate in 60 Hz :
    1Φ, 3/8" : 9.2 GPM (35 L/min)
    3Φ, 3/8" : 9.8 GPM (37 L/min)
    1Φ, 1/2" : 10.6 GPM (40 L/min)
    3Φ, 1/2" : 11 GPM (42 L/min)
  • Lift (Head Height) in 60 Hz :
    1Φ, 3/8" : 5.4 M
    3Φ, 3/8" : 6.0 M
    1Φ, 1/2" : 5.2 M
    3Φ, 1/2" : 5.7 M
  • Pressure in 60 Hz :
    1Φ, 3/8" : 7.7 PSI
    3Φ, 3/8" : 8.5 PSI
    1Φ, 1/2" : 7.4 PSI
    3Φ, 1/2" : 8.1 PSI

















TC Serise Pump 360° VR

TC-8180 Representative



TC-4180 Representative
