Multi-stages Machine Coolant Pump

Multistage Coolant Pump

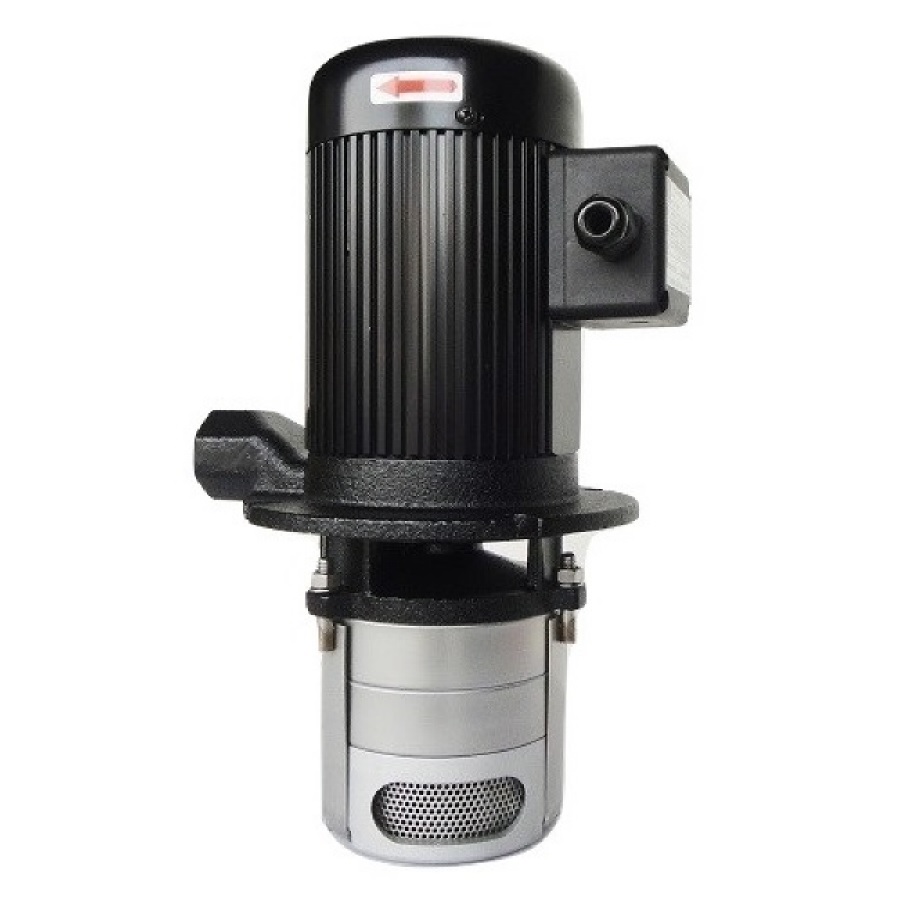

Multi-stages Coolant Pump 145mm (6") stem Coolant Pump 1 impeller for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application

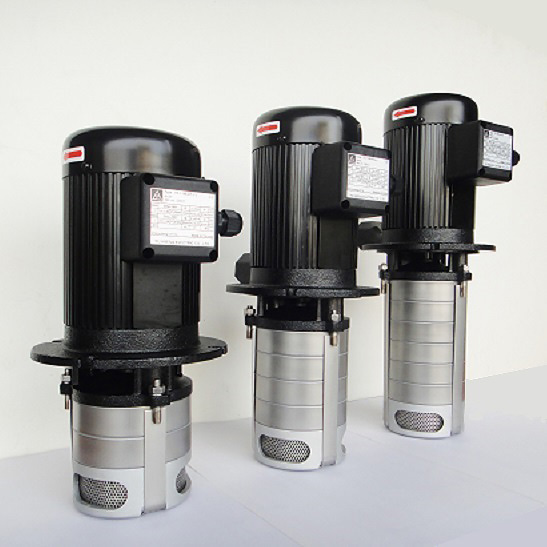

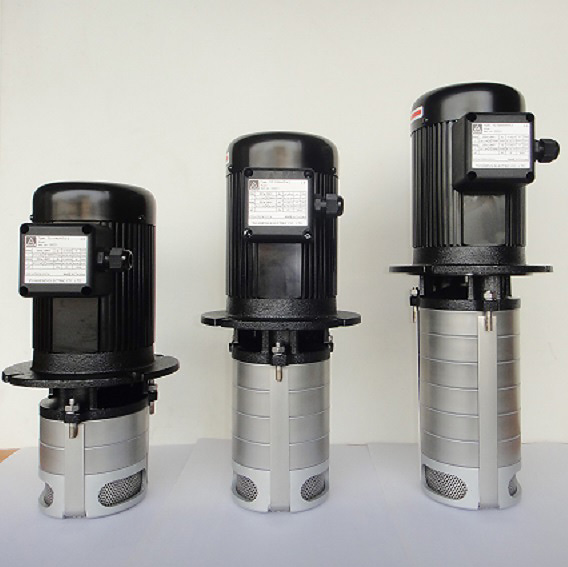

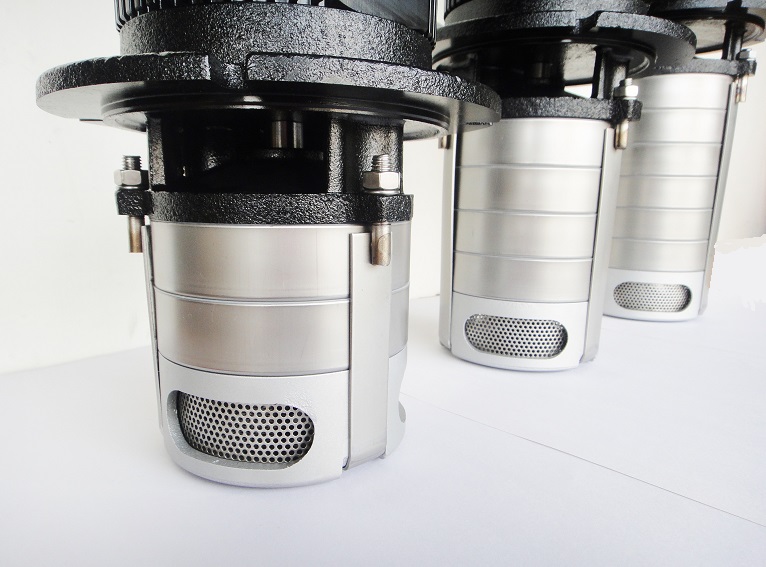

The YuHseng TC4T Series is a vertical multistage pump designed for industrial machine centers and various machine tool applications, including CNC turning, CNC milling, drilling, cutting, slitting, and grinding. Ideal for cooling systems, oil cooling, and water circulation in lathing machines, drilling machines, lapping machines, milling machines, pressing machines, stamping machines, tapping machines, and punch machines. Suitable for pumping cooling lubricants, coolant, light oil, and other clean, non-aggressive liquids.

Contact
Multi-stages Coolant Pump 145mm (6") stem Coolant Pump 1 impeller for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 145mm (6") stem Coolant Pump 1 impeller for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 145mm (6") stem Coolant Pump 1 impeller for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 145mm (6") stem Coolant Pump 1 impeller for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 145mm (6") stem Coolant Pump 1 impeller for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application

Specification




  • Brand: Yu Hseng
  • Model: TC-1145-4T-2-1
  • Power: 750W (1 HP)
  • Phase & Voltage Options: 3 Phase & 208V, 220V, 380V, 415V, 420V, 240V, 460V, 480V
  • Discharge Bore: PT(BSPT) 3/4 "

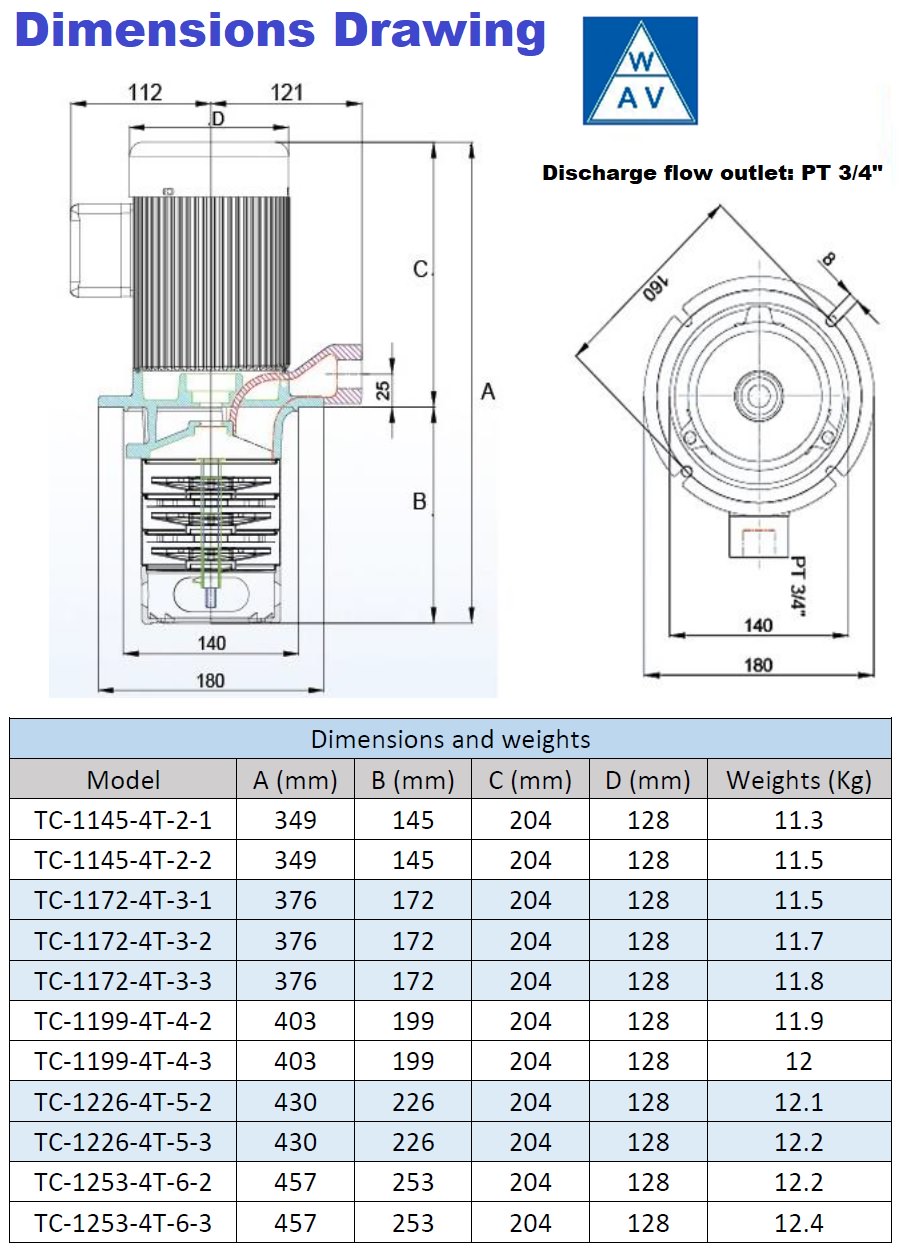

  • Length ( flange to bottom): 145 mm (6")
  • Made in Taiwan

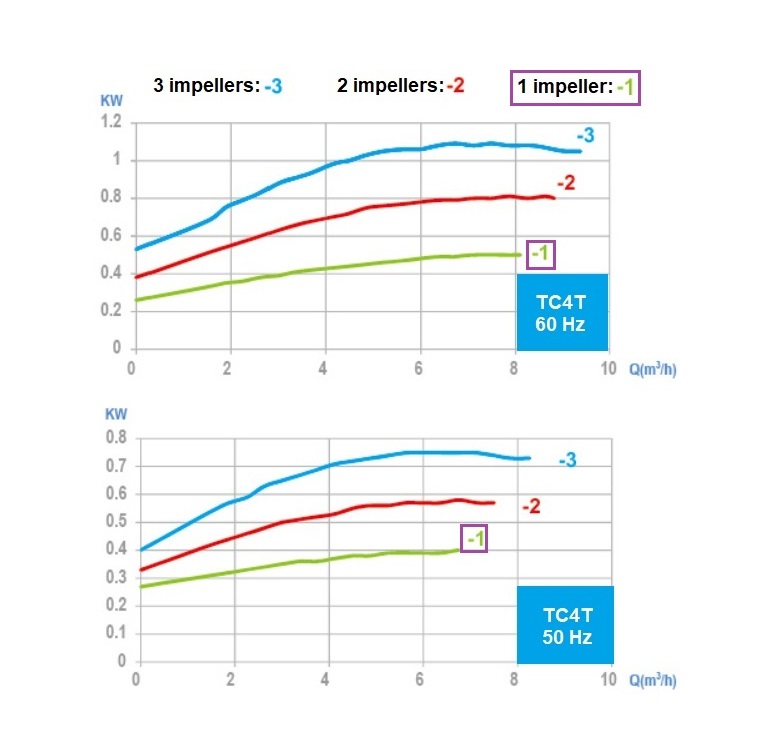

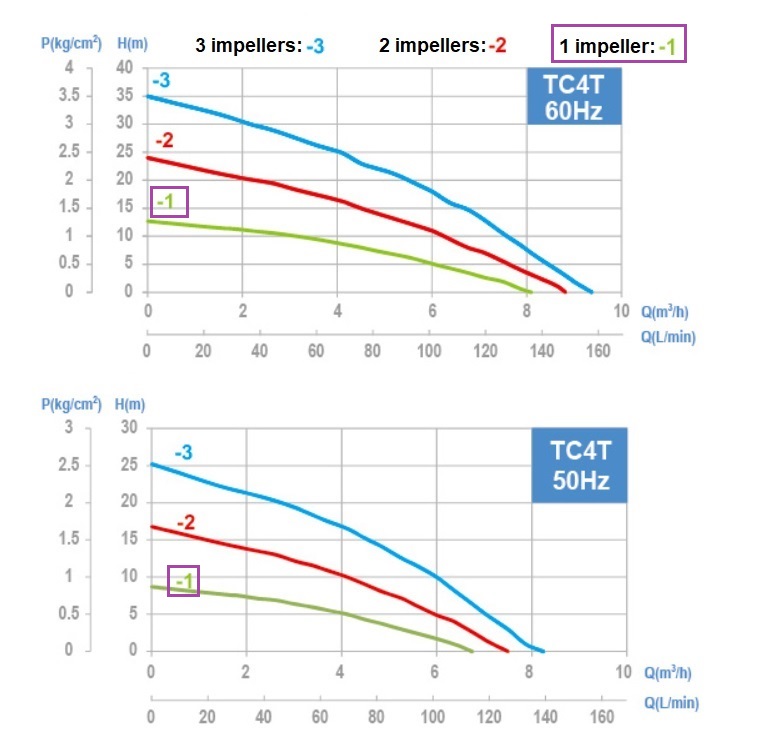

1 Impeller Performance

Power in 60 Hz

  • Max Flow Rate: 35.1 GPM (133 L/min)
  • Max Lift (Head Height) : 12.5 M
  • Max Pressure: 17.8 PSI

Power in 50 Hz

  • Max Flow Rate: 30.9 GPM (117 L/min)
  • Max Lift (Head Height) : 8.0 M
  • Max Pressure: 11.4 PSI
