TC-4XXX 1/4 HP Machine Coolant Pump

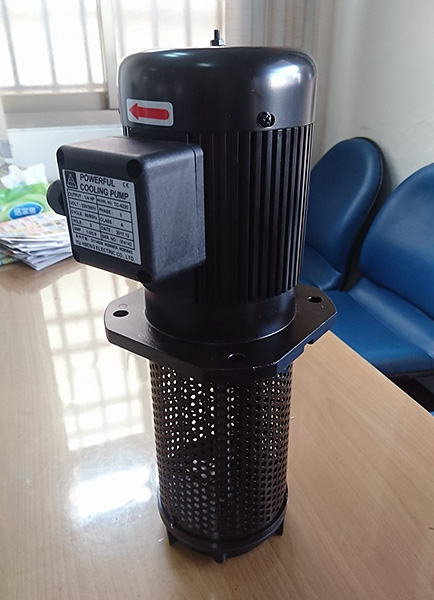

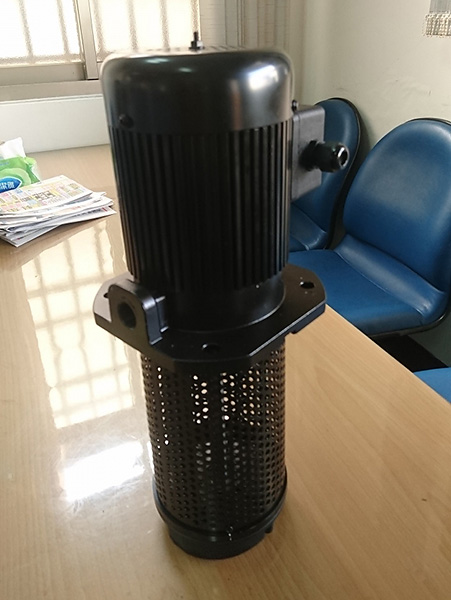

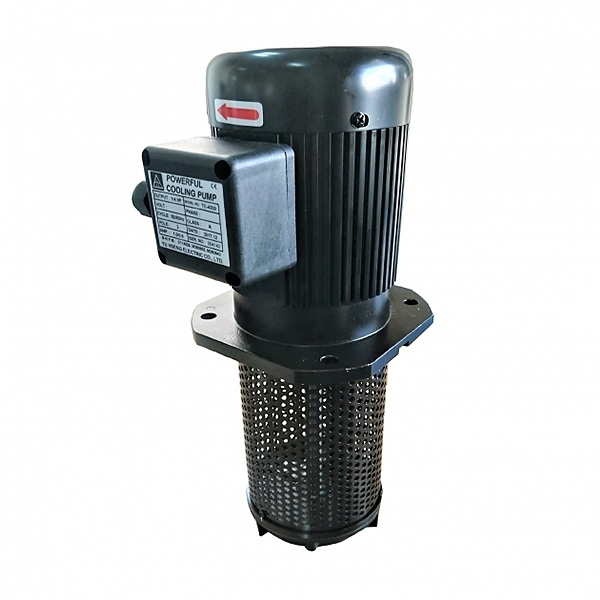

TC-4220 1/4HP Machinery Coolant pump immersion 220mm (8.7"). Lathe Milling Grinding Saw Machine Lubricant Oil Circulation

The TC Series filtered coolant pump is developed for spraying of cooling lubricants and the circulation system, especially for machine tools. It is suitable to driver liquids such as water, coolant, light oil and other clean, non-aggressive matters liquid to cooling or lubricant applications. TC Series can be used in all type machine tools to perform Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operation (Lathing machine drilling machine, lapping machine, Milling machine, pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation)

Contact

TC-4220 1/4HP Machinery Coolant pump immersion 220mm (8.7"). Lathe Milling Grinding Saw Machine Lubricant Oil Circulation

Specification


Brand: Yu Hseng
Model: TC-4220
Power: 188W (1/4 HP)
Phase & Voltage ( Low Volt / High Volt ): 1Φ & 100/200V, 110/220V, 115/230V, 120/240V; 3Φ & 220/440V, 220/380V, 208/415V, 230/460V, 240/480V
Discharge Bore: NPT 1/2", NPT 3/4", PT(BSPT) 1/2", PT(BSPT) 3/4"
(PT=BSPT=RC)

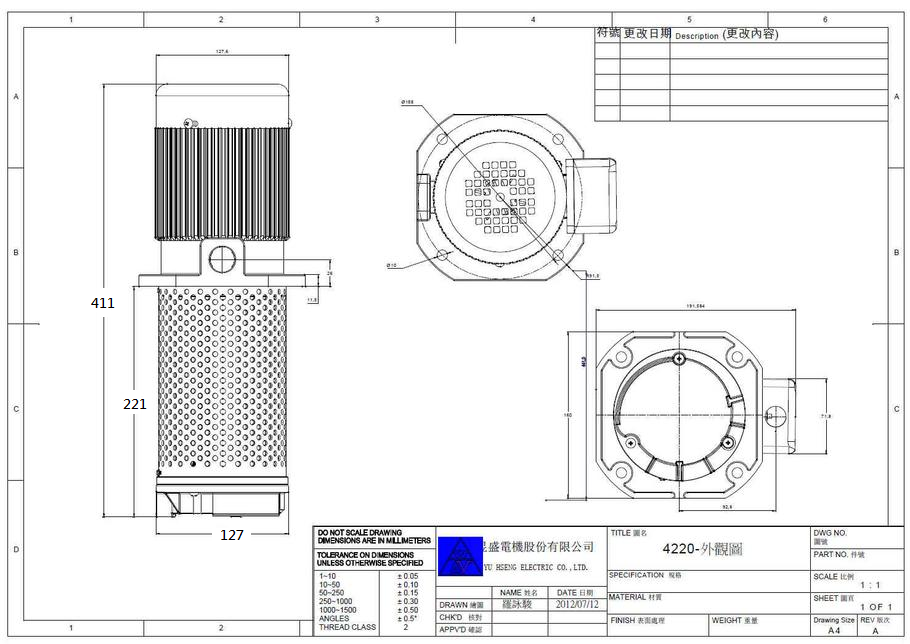

Immersion Length (flange to bottom): 220mm (8.7")
Most brands compatible ( Fuji AMT Graymills Yeong Chyung Flair Warlus etc.)
Made in Taiwan

Flow rate in 60 Hz :
1Φ, 1/2" : 19.0 GPM (72 L/min)
3Φ, 1/2" : 19.5 GPM (74 L/min)
1Φ, 3/4" : 23.0 GPM (87 L/min)
3Φ, 3/4" : 24.8 GPM (94 L/min)
Lift (Head Height) in 60 Hz :
1Φ, 1/2" : 9.80 M
3Φ, 1/2" : 10.4 M
1Φ, 3/4" : 9.50 M
3Φ, 3/4" : 10.2 M
Pressure in 60 Hz :
1Φ, 1/2" : 13.9 PSI
3Φ, 1/2" : 14.7 PSI
1Φ, 3/4" : 13.5 PSI
3Φ, 3/4" : 14.5 PSI
