Single Phase 100 series

Variable Voltage Transformer (Variac Slidac) , Single Phase 110/220V input, 1.1 KVA Max 10A, YH-110

A Variable Autotransformer, also known as a Variac or Slidac, is an electrical device used to smoothly adjust AC voltage output from 0 volts up to the input voltage or higher. Unlike traditional transformers, it uses a single winding and a sliding contact (carbon brush) to provide continuous voltage variation without steps or interruptions.

Contact

Variable Voltage Transformer (Variac Slidac) , Single Phase 110/220V input, 1.1 KVA Max 10A, YH-110

Specification

Product Description

The YU HSENG Variable Autotransformer features a robust design and precision assembly that delivers consistent output voltage with minimal waveform distortion, even under high-voltage conditions. With a compact and user-friendly design, this model offers a wide range of applications across industries. Its versatile model lineup meets diverse industrial requirements, and each unit undergoes rigorous quality control testing to ensure performance and reliability.

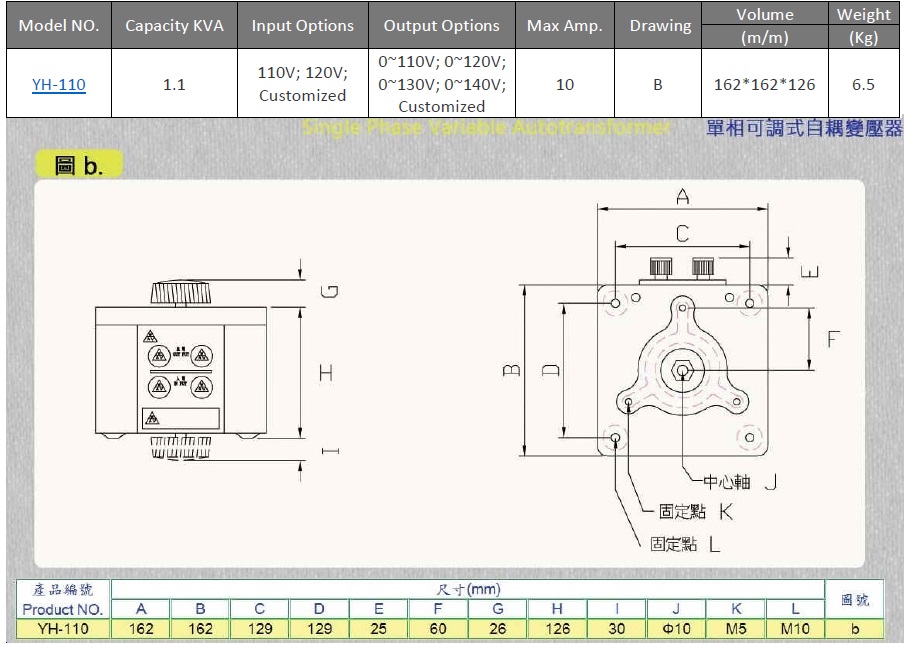

Specifications

Brand: YU HSENG
Model: YH-110
Phase & Voltage: Single Phase (1Φ), 110 Vac / 220 Vac
Input Frequency: 50 / 60 Hz
Output Voltage Ranges:0~110V, 0~120V, 0~130V, 0~140V
Max Output Power: 1.1 KVA
Max Amp: 10A
- Shape: Quadrangle
Dimensions (mm): 162 × 162× 126
Net Weight: 6.5 kg
Country of Origin: Taiwan

Applications

Ideal for use in:

Torque motors
Automatic voltage regulators (AVRs)
Testing and measurement setups
Educational lab equipment
Industrial voltage regulation
Motor control and testing systems
Devices requiring variable AC voltage input
