Single Phase 200 series

Variable Voltage Transformer (Variac Slidac) Single Phase 220/240V input, Max 0.44 KVA, Max 2 A, Customize Available YH-202(L)

A Variable Autotransformer, also known as a Variac or Slidac, is an electrical device used to smoothly adjust AC voltage output from 0 volts up to the input voltage or higher. Unlike traditional transformers, it uses a single winding and a sliding contact (carbon brush) to provide continuous voltage variation without steps or interruptions.

Contact

Variable Voltage Transformer (Variac Slidac) Single Phase 220/240V input, Max 0.44 KVA, Max 2 A, Customize Available YH-202(L)

Specification

Product Description

The YU HSENG Variable Autotransformer features a robust design and precision assembly that delivers consistent output voltage with minimal waveform distortion, even under high-voltage conditions. With a compact and user-friendly design, this model offers a wide range of applications across industries. Its versatile model lineup meets diverse industrial requirements, and each unit undergoes rigorous quality control testing to ensure performance and reliability.

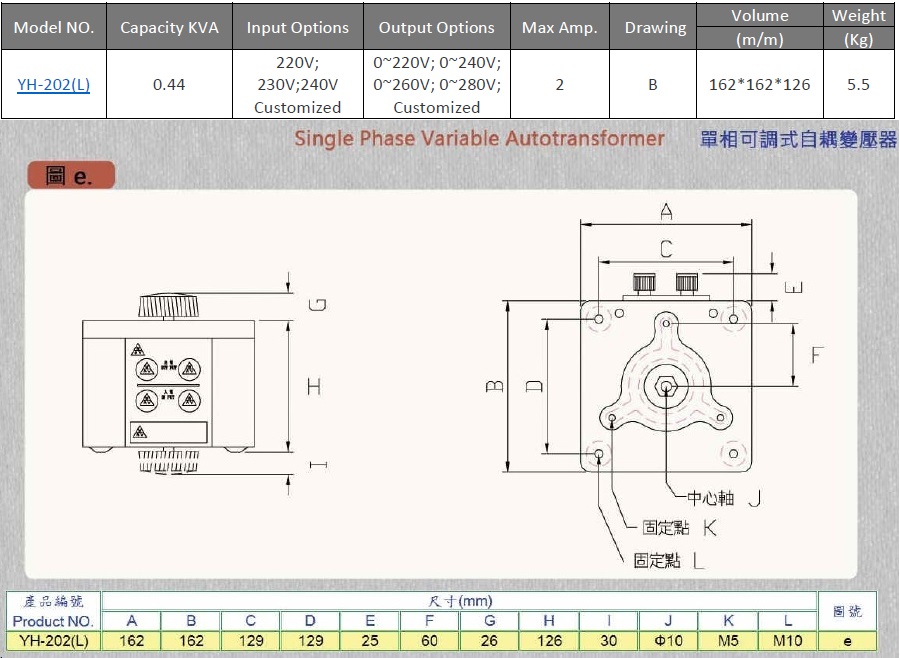

Specifications

Brand: YU HSENG
Model: YH-202 (L)
Phase & Voltage: Single Phase (1Φ), 220 Vac / 240 Vac
Input Frequency: 50 / 60 Hz
Output Voltage Ranges: 0~220V , 0~240V, 0~260V, 0~280V
Max Output Current: 2A
Max Output Power: 0.44 kVA
- Shape: Quadrangle
Dimensions (mm): 162 × 162 ×126
Net Weight: 5.5 kg
Country of Origin: Taiwan

Applications

Ideal for use in:

Torque motors
Automatic voltage regulators (AVRs)
Testing and measurement setups
Educational lab equipment
Industrial voltage regulation
Motor control and testing systems
Devices requiring variable AC voltage input
