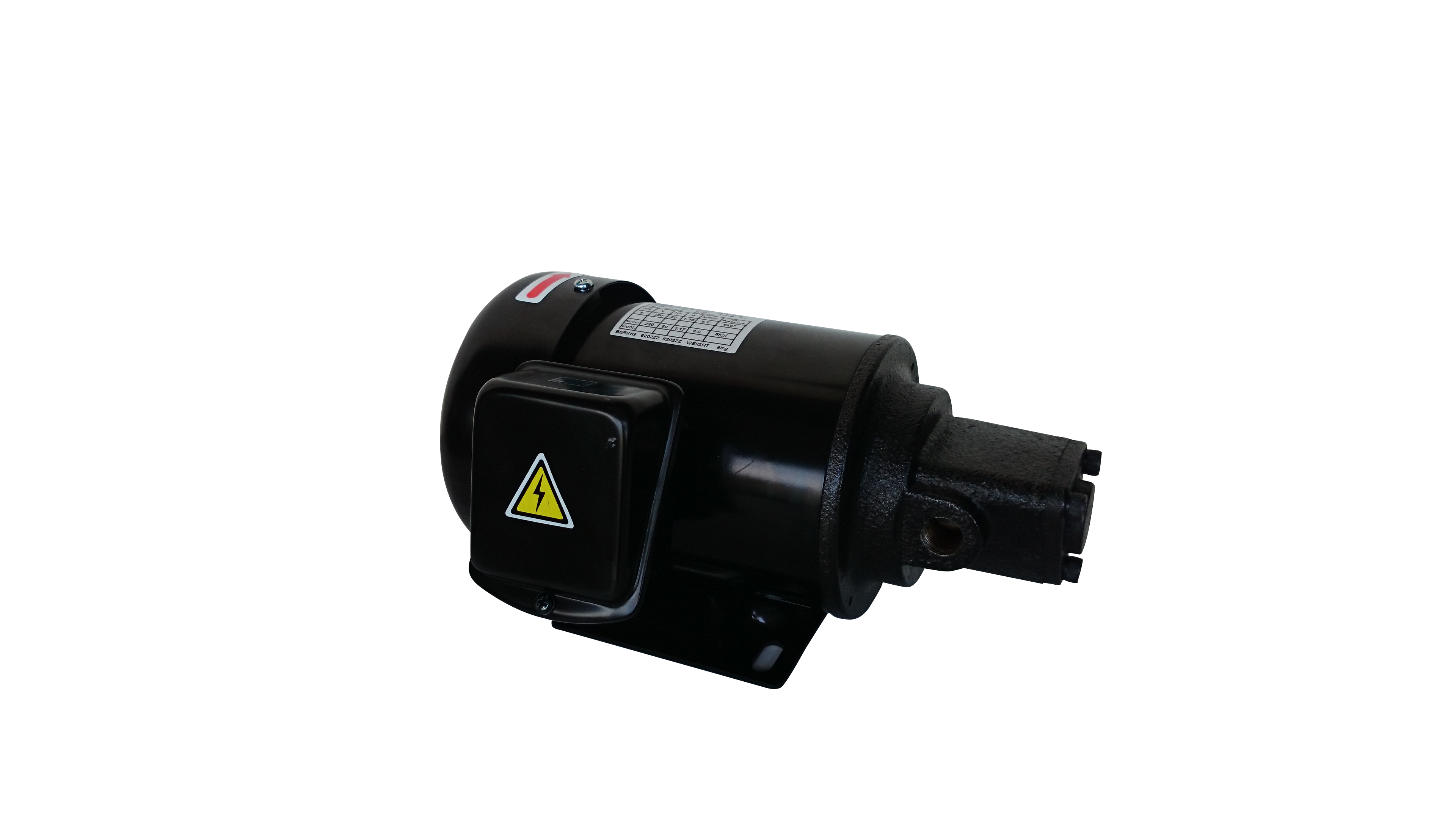

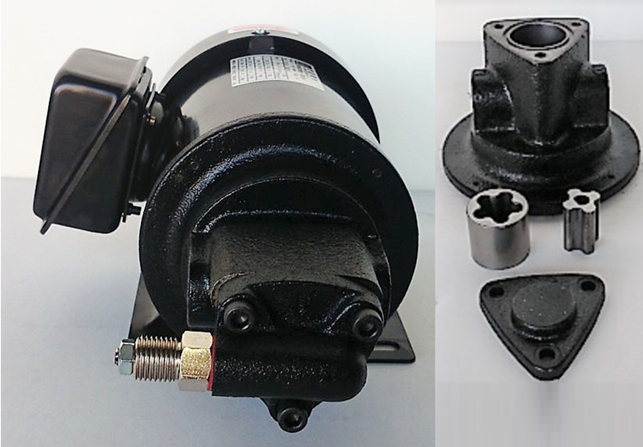

Trochoid Oil Pump: Trochoid Gear Pump, Rotary Oil Pump, Triangular oil pump or Oil circulation pump is the same product. It can be applied widely for lubricating or cooling in various machines, such as oil cooler or water chiller for CNC machines, knitting machines and planning machines.
Ø 1/4 HP Horizontal Motor with one piece formed shaft reduce the tolerance.
Ø Adjustment model (TC-13AV & TC13AV_E) can provide variable output flow for suitable pressure.
Ø Standard rotary diction is clockwise. Anti-clockwise is available by demanded.
Ø The suitable oil viscosity is R32~68cSt @ 40 ℃ ,and suitable operating temperature is 0℃ ~ 90℃
|
Model |
Power in HP |
L/min (50 Hz) |
L/min (60 Hz) |
Kg/ |
Discharge Bore |
|

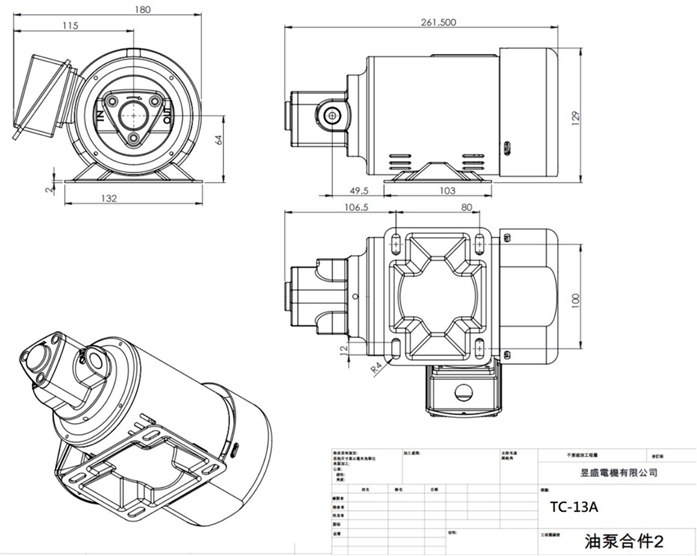

TC-13A |
1/4 |
6.0 |
7.0 |
10 adjustable |
3/8” PT(BSPT) |
|

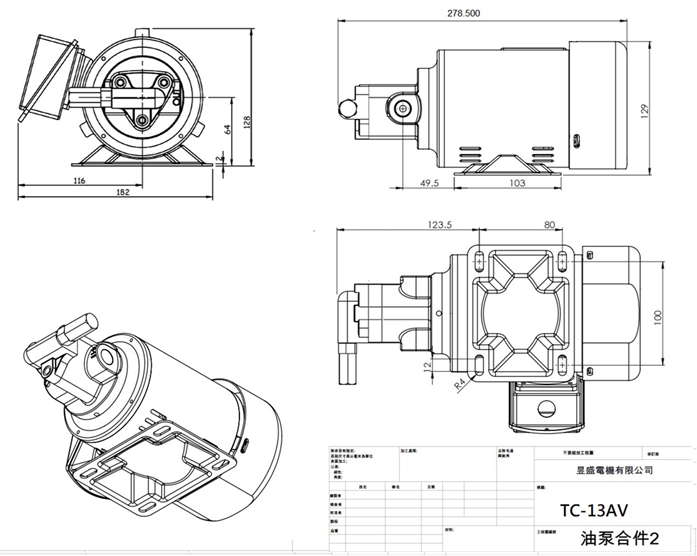

TC-13AV |
1/4 |
6.0 |
7.0 |
3~10 adjustable |
3/8” PT(BSPT) |
