Multi-stages Machine Coolant Pump

Multistage Coolant Pump

Multi-stages Coolant Pump 172mm (7") stem Coolant Pump 3 impellers for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application

The TC4T Series is vertical multistage pump and developed for industrial machine center and applications , especially for machine tools like CNC, Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operations (Lathing machine drilling machine, lapping machine, Milling machine, pressing machine, stamping machine, tapping machine, punch machine, cooling system, oil cooling, water circulation). It is suitable to carry and spraying liquid such as cooling lubricants, coolant, light oil and other clean, non-aggressive matters.

Contact
Multi-stages Coolant Pump 172mm (7") stem Coolant Pump 3 impellers for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 172mm (7") stem Coolant Pump 3 impellers for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 172mm (7") stem Coolant Pump 3 impellers for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 172mm (7") stem Coolant Pump 3 impellers for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application
  • Multi-stages Coolant Pump 172mm (7") stem Coolant Pump 3 impellers for CNC Lathe Milling Grinding Machine Circulation Cooling lubricant Application

Specification




  • Brand: Yu Hseng
  • Model: TC-1172-4T-3-3
  • Power: 750W (1 HP)
  • Phase & Voltage Options: 3 Phase & 208V, 220V, 240V, 380V, 415V, 420V, 460V, 480V
  • Discharge Bore: PT(BSPT) 3/4 "

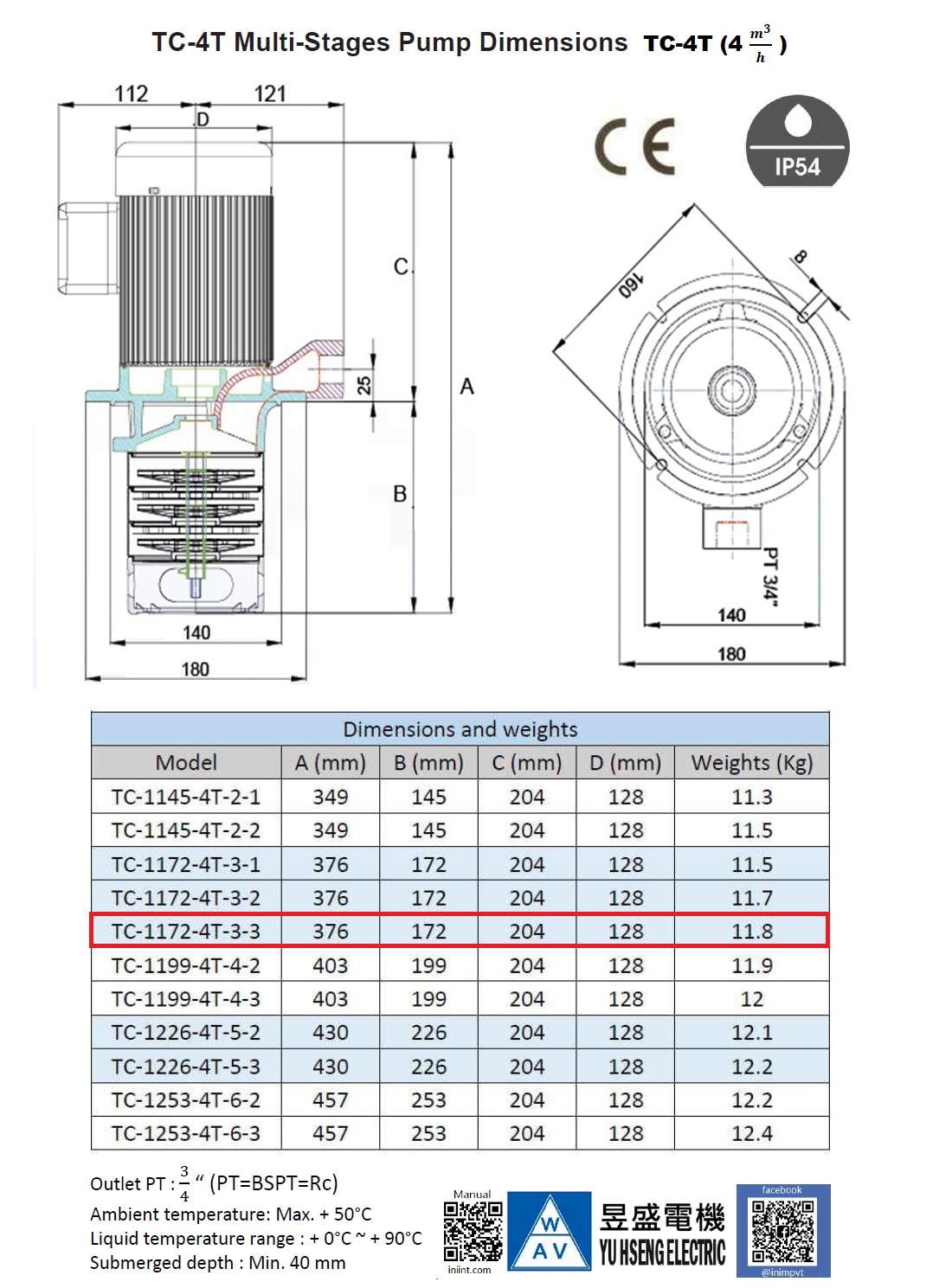

  • Length ( flange to bottom): 172 mm (7")
  • Made in Taiwan



3 Impellers Performance

Power in 60 Hz

  • Max Flow Rate: 41.2 GPM (156 L/min)
  • Max Lift (Head Height) : 34.9 M
  • Max Pressure: 49.6 PSI

Power in 50 Hz

  • Max Flow Rate: 36.5 GPM (138 L/min)
  • Max Lift (Head Height) : 25 M
  • Max Pressure: 35.5 PSI
